Multimeric Enzymes

Equine Alcohol Dehydrogenase


Horse liver alcohol dehydrogenase exists as a homodimer or heterodimer- there are two different types of monomer, denoted E and S. However these two forms are near-identical (both consisting of 374 amino acids), as there are only six residues which are different. None of these six occur in the interface region between the two. There are three possible combinations of the subunits: EE, SS and ES; these are therefore isozymes (or isoenzymes). When isolated from liver, 40-60% of the enzyme is of the EE form.

Each of the two subunits of the horse enzyme has one binding site for NAD+ and two binding sites for Zn2+. Only one of the zinc ions is involved directly in catalysis. It is ligated by the side chains of Cys 46, His 67, Cys 174 and a water molecule which hydrogen bonds to Ser 48. (If you wish to view this water molecule, download the 8adh PDB structure, which is a monomer without NAD+, as the 6adh dimer includes no water molecules.)

The zinc ion is situated at the junction of two binding sites: one of these is a pocket which binds NAD+, while the other is a cleft which binds the substrate (which is one of a variety of aromatic and aliphatic alcohols).

Download one or both of these crystal structures of horse liver alcohol dehydrogenase:

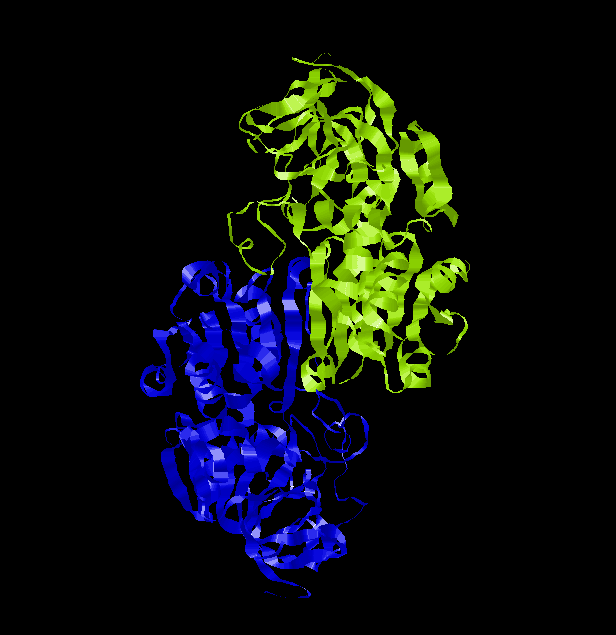

Click here for a diagram of the dimer; use this SCRIPT 2 on the 6adh structure (see above) to render as in this diagram

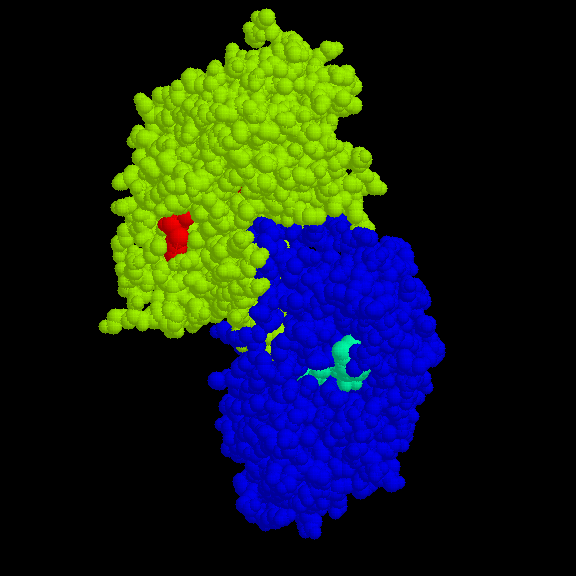

and here for a space-filling model, where the NAD+ molecules are visible. If you have just run SCRIPT 2, type rotate y 180 followed by spacefill in the RasMol command line window to obtain this rendition

The domain involved in subunit-subunit interactions includes a six-stranded parallel beta sheet- this is a doubly wound alpha/beta fold (link to Section 10). The strands of each subunit are in an antiparallel alignment with respect to each other, giving a twelve-stranded mixed beta sheet.

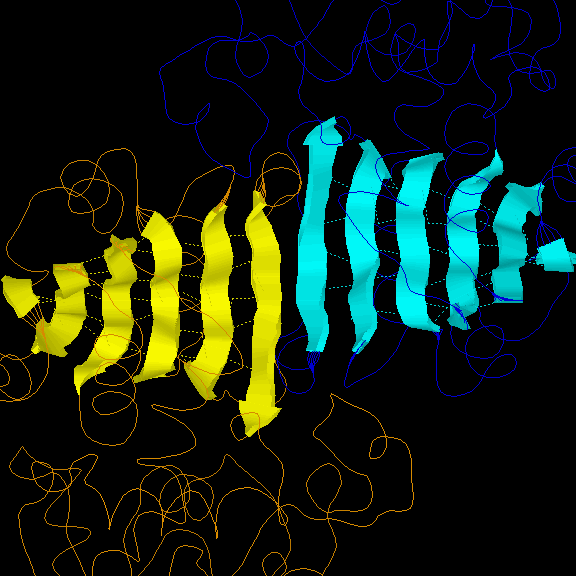

This is indicated in this diagram . Obtain a similar rendition with SCRIPT 3.

In order to visualize how two monomers pack together to form a dimer, we will concentrate on the positions of the side chains of His-105 and Tyr-286. The face of the histidine of one subunit stacks against the tyrosine of the other, and vice-versa. To highlight these, type the RasMol commands:

select (his105.CA,tyr286.CA),(his105,tyr286) and sidechain
wireframe 80

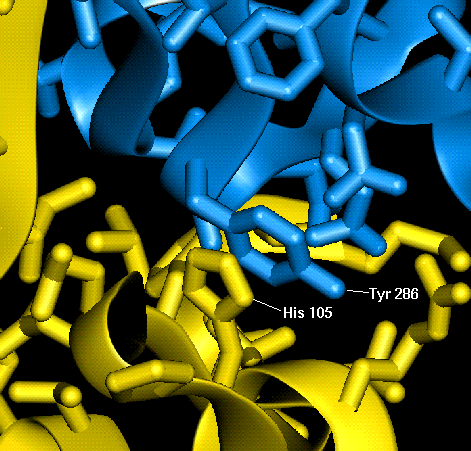

This diagram illustrates this packing. Or use this short SCRIPT 4.

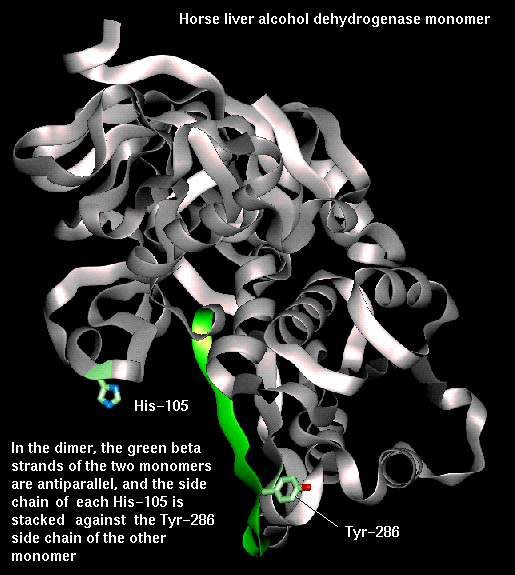

The following diagram indicates the positions of these side chains in relation to the interfacial beta strands and the monomer as a whole.

SCRIPT 5

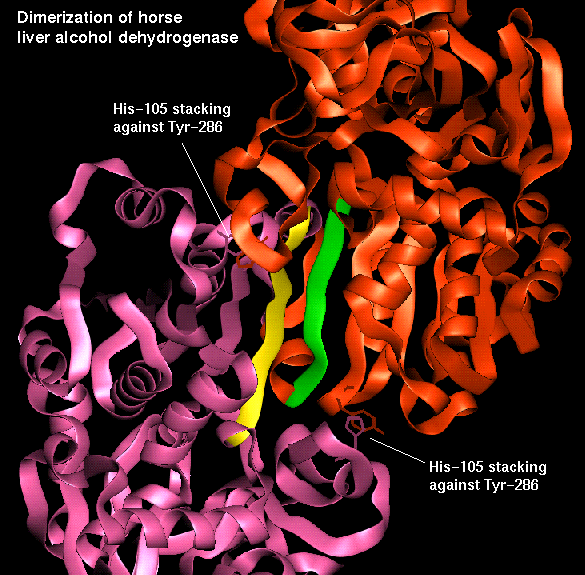

The symmetry of the monomer- monomer interaction is shown here. SCRIPT 6

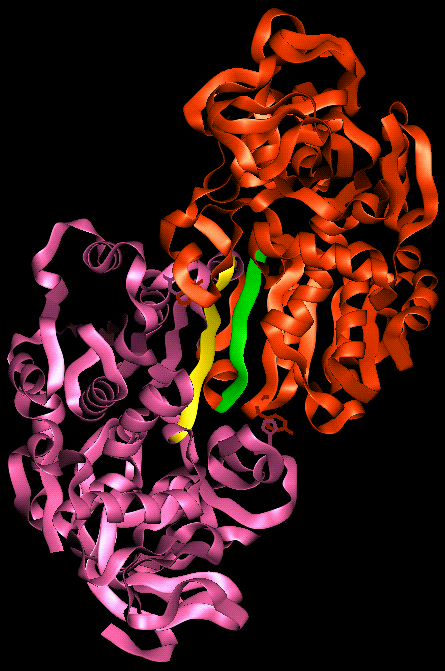

A larger scale diagram of the dimer is shown. Make sure you can locate the axis of symmetry.

Consider how precise the interaction surface of the monomer must be in order for this dimerization to occur.

Note that in other organisms the enzyme exists in different multimeric forms. For example, the subunit of yeast alcohol dehydrogenase has a high degree of homology with the horse liver protein, but is tetrameric.
